Dear concubine (1 and 2) Adaptor 18 volts 2.2A 40W + Cable
35,00 €

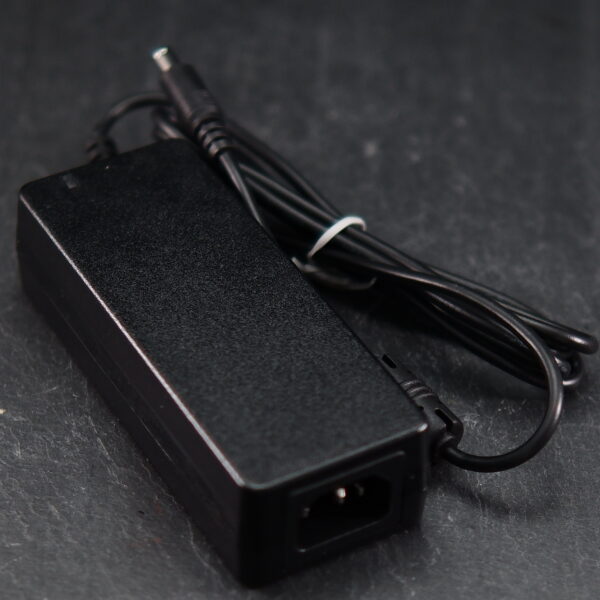

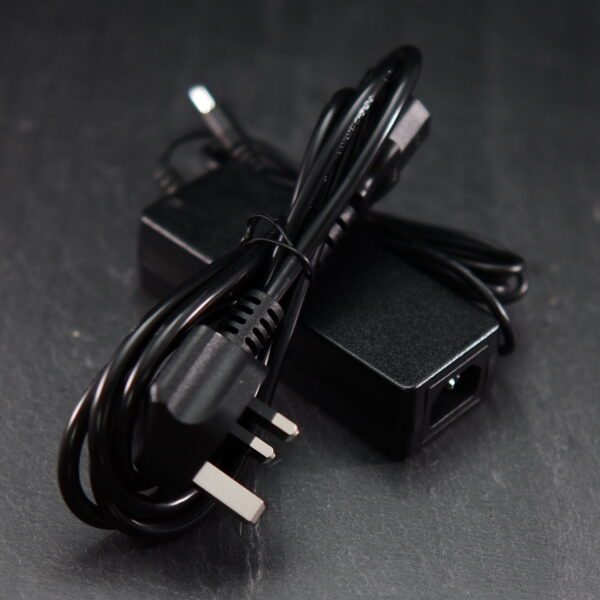

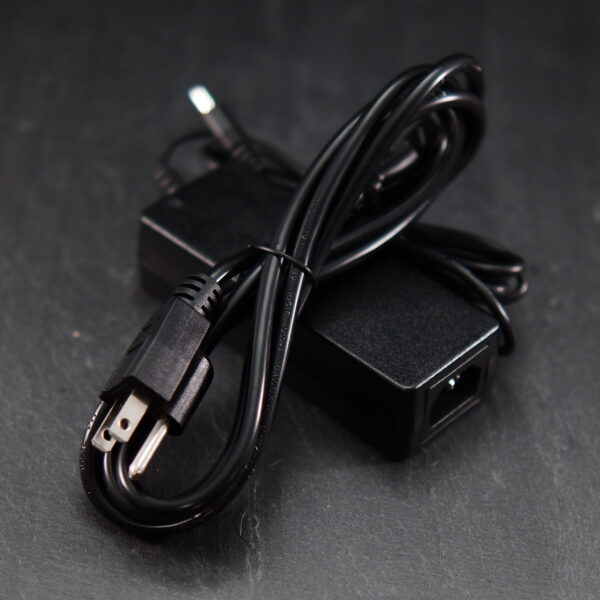

AC/DC Adaptor 18 volts_2.2A_40W + Cable
AC/DC Adaptor 18 volts_2.2A_40W + Cable Desktop adapter.
Plastic box format.
Universal input range 90-264Vac 47-63Hz.
- Output:
Voltage 18Vdc.
Current 2.2A.
Current range 0-3.33A (depending on the load demand). - Power: 40W.
Dimensions (Length x Width x Height) [mm]: 125 x 50 x 31.5.
AC/DC Adaptor 18 volts_2.2A_40W + Cable
AC/DC Adaptor 18 volts_2.2A_40W + Cable Desktop adapter.
Plastic box format.
Universal input range 90-264Vac 47-63Hz.
- Output:
Voltage 18Vdc.
Current 2.2A.
Current range 0-3.33A (depending on the load demand). - Power: 40W.
- Typical efficiency: 89.5%.
- Class l without grounding.
- Consumption without load <0.075W.
- Input-output insulation: 3000Vac.
- Noise and ripple: 150mVp-p.
- Led indicator of operation.
- Working temperature: from -30 to +70ºC ambient temperature.
Dimensions (Length x Width x Height) [mm]: 125 x 50 x 31.5.
Switch-mode power supplies in desktop format with a European IEC320-C14 input connector and a 5.5 x 2.1 x 11 mm Jack-type output connector (external diameter, internal diameter and length) and positive center.
They have a low no-load power consumption of just 0.075W and meet the latest energy efficiency requirements (level Vl).
They are certified: CE (for Europe), UKCA (for United Kingdom), UL (for United States and Canada), BSMI (for Taiwan), CCC (for China), PSE (for Japan), RCM (for Australia and New Zealand). , KCC (for Korea), BIS (for India), EAC (for Russia, Belarus, Armenia, and Kazakhstan), SIRIM (for Malaysia), and is CB and TUV certified.
Its high efficiency and minimum consumption without load, make them perfect for all kinds of applications.
